 Razor Barbed Tape

Razor barbed tape is a type of modern security fencing material fabricated with razor-sharp steel blade and high-tensile wire. It's mostly installed for frightening and stopping aggressive perimeter intruders. With piecing and cutting razor blades mounted at the top of the wall, the razor barb concertina makes climbing and touching extremely difficult. In addition, the wire and strip are galvanized to prevent corrosion.

Our razor barbed tape wire products are well received in China and have been exported to Europe and the U.S.A., Southeast Asia, Middle East, Africa, also other countries and regions.

Types of Razor Barbed Tape
1) Concertina Coil Wire
Concertina coil barbed wire is also known as crossed razor barbed wire. Two pieces of stainless steel razor wire or zinc-coated razor wire are bound together by clips to make it stronger.

The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful feature and practicality.

2) Single Coil Razor Wire
Single coil barbed tape wire is installed without clips, it runs in natural loops on walls or fencings.

3) Razor Flat Fence
Razor flat fence is one of our newly developed razor product (flat wrap). Three sizes are available: 500mm × 15m, 700mm × 15m and 900mm × 15m.

4) Welded Razor Wire Mesh
Welded razor wire mesh fence is a new form of razor barbed wire for security. With blade, this kind of razor wire fence is very practical and it has a beautiful appearance.

Razor wire mesh fence can be used as guarding fence, for doors and windows. It can also be used in military.
Barbed Tape Concertina (BTC); Barbed Tape Obstacle (BTO)
Standard materials are either galvanized or stainless steel.
Standard packages products are shown in the tables above, special specifications available on request

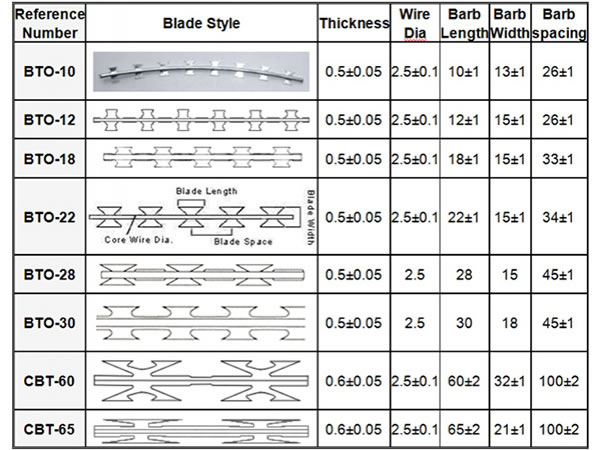

Specifications of Razor Barbed Tape
Outside Diameter No. of Loops Standard Length per Coil Type Notes
450mm 33 7-8M CBT-60.65 Single coil
500mm 56 12-13M CBT-60.65 Single coil
700mm 56 13-14M CBT-60.65 Single coil
960mm 56 14-15M CBT-60.65 Single coil
450mm 56 8-9M (3 CLIPS) BTO-10.12.18.22.28.30 Cross type
500mm 56 9-10M (3 CLIPS) BTO-10.12.18.22.28.30 Cross type
600mm 56 10-11M (3 CLIPS) BTO-10.12.18.22.28.30 Cross type
600mm 56 8-10M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
700mm 56 10-12M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
800mm 56 11-13M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
900mm 56 12-14M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
960mm 56 13-15M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
980mm 56 14-16M (5 CLIPS) BTO-10.12.18.22.28.30 Cross typespecifications available on request Barbed

Packing
For the packing, we mainly supply two kind of packing: simple packing and carton packing.
1. For simple packing, inside is water proof paper and outside is woven bags; sometimes we can load the container one coil by one coil and sometimes we can make the coils to big bundles and for loading easily. It's mainly for BTO-10, 12, 22, 30 and CBT-25.
2. For carton packing, it is mainly application to CBT-65, 60 (450mm)
3. Special kind of packing is also available

Notes
Standard products are shown in the tables above, special specifications available on request.
Standard materials are either galvanized or stainless steel.
