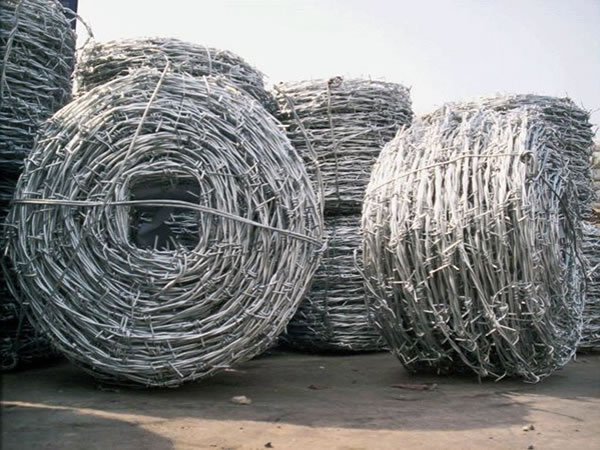

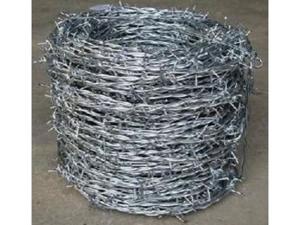

Barbed Wire

Chinese Producer of Barbed Iron Wire, Fencing Toppings, Anti-Climb Fencing

Using galvanized steel wires and PVC coated iron wires as raw material, the barbed wire provides a higher than normal level of tensile strength and corrosion resistance in comparison to commonly-used anti-climb systems. A wide application of fencing topping is found in grass boundary, railway, highway, car parks, industrial premises, animal husbandry and just to name a few.

Note: The wire colors are available in blue, green, yellow and more.

Technical Parameters of Barbed Wire
Barbed Wire Specification
Type Wire Gauge (SWG) Barb Distance (cm) Barb Length (cm)
Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire 10# x 12# 7.5-15 1.5-3
12# x 12#
12# x 14#
14# x 14#
14# x 16#
16# x 16#
16# x 18#
PVC coated barbed wire; PE barbed wire before coating after coating 7.5-15 1.5-3
1.0mm-3.5mm 1.4mm-4.0mm
BWG11#-20# BWG8#-17#
SWG11#-20# SWG8#-17#

PVC PE coating thickness:0.4mm-0.6mm; different colors or length are available at customers request

With wooden spool* on pallet, or Rolled without pallet.
*(A hole was bored in the Wooden spool's center, allowing retailers to slip spools onto a horizontal bar for easy unrolling.)
