Hose Reinforcement Wire

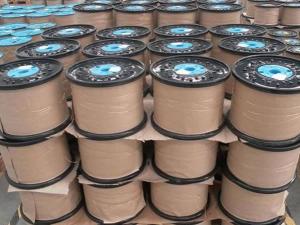

Brass Plated Steel Wire for Hose Reinforcement, Hose Wire, Rubber Hose Steel Wire

Hose Reinforcement Wire
  • Hose Reinforcement Wire
  • Hose Reinforcement Wire
  • Hose Reinforcement Wire
  • Hose Reinforcement Wire
  • Hose Reinforcement Wire
  • Hose Reinforcement Wire
  • Hose Reinforcement Wire
  • Hose Reinforcement Wire
  • Hose Reinforcement Wire
  • Hose Reinforcement Wire
  • Hose Reinforcement Wire

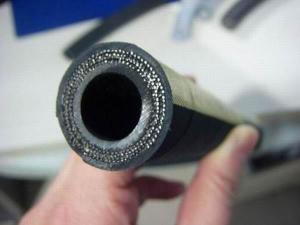

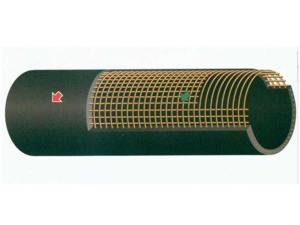

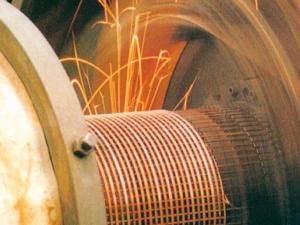

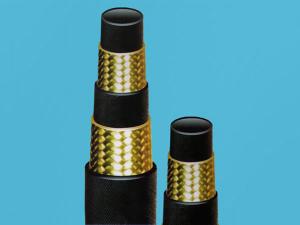

Hose reinforcement wire is used as braided or spiral wrapped reinforcement for rubber and thermoplastic high pressure hoses. These high-pressure rubber hoses can stand high pressure and high impulsive force, and can be used into machinery, aviation, ocean industry, petrol drilling industry, etc.

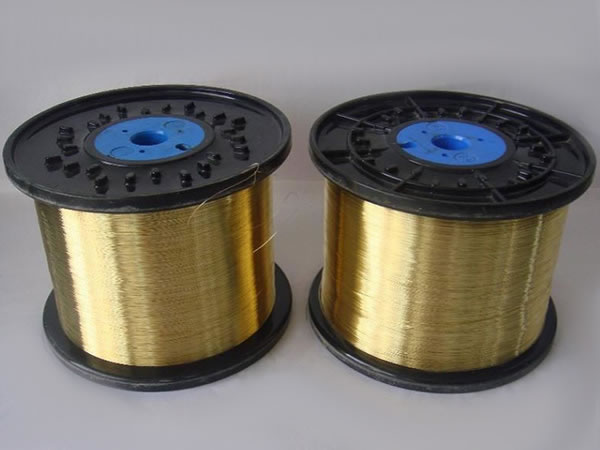

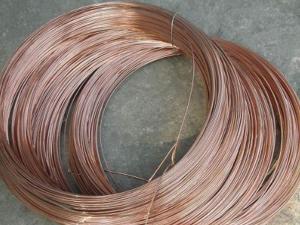

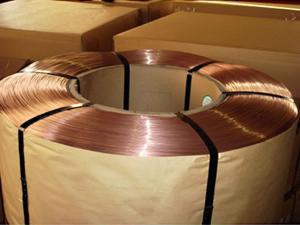

The surface of this steel wire is plated with a uniform layer of copper-zinc alloy. The copper-zinc ratio of the plating layer is 68 4%: 32 4%.

Technical parameters of Hose Reinforcement Wire
Diameter
(mm) 		Tolerance
(mm) 		Tensile Strength (N/mm2) Min. Torsion (NO/100d) Min. Bending
(N0) 		Knotted Rate(≥%) Elongation (≥%) Brass Mass (g/kg) Cu Content
(%)
0.20 ±0.010 2150-2450
2450-2750
2750-3050
3050-3350 		41
41
41
35 		125
125
125
125 		58
58
50
50 		1.6 3.5--5.5 64--71.5
0.22 2150-2450
2450-2750
2750-3050
3050-3350 		41
41
38
32 		125
125
125
125 		58
58
50
50
0.25 2150-2450
2450-2750
2750-3050
3050-3350 		41
41
40
30 		125
125
105
75 		58
58
50
50
0.28 2150-2450
2450-2750
2750-3050
3050-3350 		40
40
35
30 		115
105
85
65 		58
58
50
50
0.295 2150-2450
2450-2750
2750-3050
3050-3350 		40
39
33
28 		105
100
85
65 		58
58
50
50
0.30 2150-2450
2450-2750
2750-3050
3050-3350 		40
39
31
25 		105
100
85
65 		58
58
50
50
0.32 ±0.015 2150-2450
2450-2750
2750-3050
3050-3350 		39
38
30
25 		90
85
75
65 		58
58
50
50
0.33 2150-2450
2450-2750
2750-3050
3050-3350 		37
35
30
25 		80
75
65
55 		58
58
50
50
0.35 2450-2750
2750-3050
3050-3350 		35
30
25 		60
55
50 		58
50
50
0.38 2150-2450
2450-2750
2750-3050
3050-3350 		35
35
30
20 		65
65
55
50 		58
58
50
50
0.40 2150-2450
2450-2750
2750-3050
3050-3350 		35
35
30
20 		55
55
50
45 		58
58
50
50
0.45 2150-2450
2450-2750
2750-3050 		30
30
25 		45
45
40 		58
58
50 		1.8 3.0--5.0
0.50 2150-2450
2450-2750
2750-3050 		30
30
25 		40
35
30 		50
50
50 		1.9
0.56 2150-2450
2450-2750
2750-3050 		28
28
24 		35
30
25 		50
50
50 		1.9
0.60 2150-2450
2450-2750 		30
28 		30
28 		50
50 		2.0
0.65 2150-2450
2450-2750
2750-3050 		27
27
25 		27
27
25 		50
50
50 		2.2
0.70 2150-2450
2450-2750
2750-3050 		25
25
24 		25
25
24 		50
50
50

Note: Specifications like elongation and diameter can be designed upon customer's requirements.
