Galvanized Steel Strips

Zinc-Coated Steel Tape, Galvanized Steel Coils, China Steel Strip

 Galvanized Steel Strips

A Brief Introduction to Galvanized Steel Stripes
Finish: The surface of galvanized steel strips is free form scales, seams, Zinc flakes and other surface imperfection. The zinc coating shall be smooth and continuous.
Thickness: 0.15 mm to 2.00 mm
Width: 15 mm to 1250 mm
Tensile Strength: 28 to 50 kgf/mm2
Elongation: Minimum 10% on 254 mm gauge length.
Zinc Coating: Minimum 110 gm/sqm (total weight on all four sides). However, this can be designed to suit customer's requirements.

Technical Parameters of Galvanized Steel Strip

PLAIN SKIN PASSED CORRUGATED GALVANNEAL
Thickness (mm) 0.10 to 2.00 0.30 to 2.00 0.12 to 1.20 0.30 to 2.00
Width (mm) Up to 1250 Up to 1250 660,762,800,900,1050 Upto 1250
Cut-To-Length (mm) Up to 4500 Up to 4500 Up to 4100 (16") Upto 4500
Surface Finish Regular And minimum Spangles Mate with Zero/minimum Spangles Regular Spangles Matte
Coating Mass (Gms/m2) 80 to 300 80 to 300 80 to 300 80 to 300
Grades Soft/Lock Forming EDD, DD & D ( SPCEN, SPCD, SPCC) Roofing EDD,DD&D

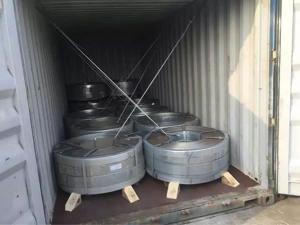

Packing Options
Galvanized steel coils are wrapped in strong water proof sea-worthy packing and are in palletized loads.
Other types of packing can be done as required.

Normal Delivery Schedules

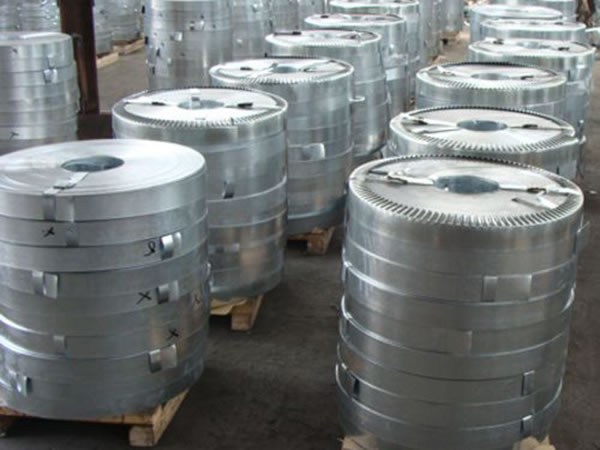

Delivery Form: Galvanized Steel Strips are supplied in continuous lengths in ribbon wound coils.
Coil Size: Inside Diameter- minimum 150 mm, Outside Diameter - Within 400-800.

Product Testing
Galvanized Steel Strips are manufactured according to customer's requirements and specifications.

Our products conform to the following standards
ASTM A90 BS 2989
ASTM A93 IS 3975
ASTM A459
