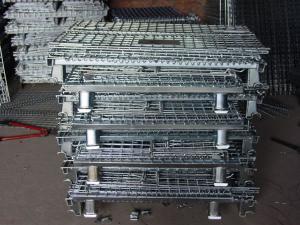

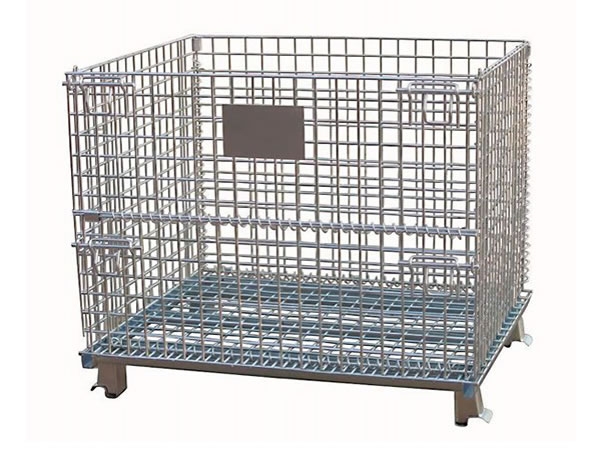

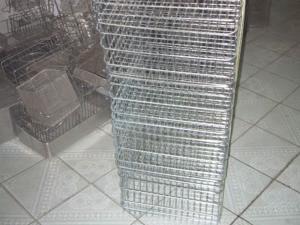

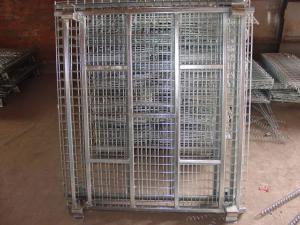

Collapsible Wire Container

Wire Containers, Folding Wire Container, Industrial Wire Container

Collapsible Wire Container
Collapsible Wire Container Collapsible Wire Container Collapsible Wire Container Collapsible Wire Container Collapsible Wire Container
Inquiry Form

Material: stainless steel (AISI302/304/316/310) or mild steel
Surface Treatment: electro-polished, Cr-coated, Ni-coated, electro-galvanized, PVC-coated, painted
Applications: Goods storage, transportation

Specifications of Collapsible Wire Container
Type Wire Dia. (mm) Mesh Opening (mm) Outside Size(mm) Weight (kg) Distance between legs (mm) Volume (m3) Capacity (kg)
Length Width Height Length Width
A-3 6.0 50 x 50 800 500 540 26 670 347 0.15 800
A-3b 5.0 50 x 50 800 500 540 21 670 347 0.15 800
A-4 6.0 50 x 50 800 600 640 30 670 447 0.22 800
A-5 6.0 50 x 50 1000 800 840 47 855 570 0.52 1000
A-5b 6.0 50 x 50 1000 800 490 35 855 570 0.26 1000
A-7 6.0 50 x 50 1200 1000 890 67 1065 765 0.64 1200
B-5 6.4 50 x 50 1000 800 840 53 855 570 0.52 1200
B-7 6.4 50 x 50 1200 1000 890 77 1065 765 0.84 1500
S-5 6.4 50 x 100 1000 800 840 44 855 570 0.52 1000
S-7 6.4 50 x 100 1200 1000 890 64 1065 765 0.84 1200
BM-6 6.0 50 x 50 1050 900 940 56 915 665 0.71 1200
BL-6 4.5 50 x 50 1090 930 740 42 930 870 0.42 1000
JL-6 6.0 50 x 50 1090 930 740 62 930 870 0.42 1200

If the existing products cannot satisfy your demands, we also provide professional customization service.
