PC strand

Galvanized PC Strand, Prestressed Concrete Steel Strand

Material: high carbon steel
Strand size: 6.2mm-17.80mm
Tensile strength: from min.1470 N/mm2 to min.1960N/mm2
Zinc coating: According to ASTM A475 Class A
Standard: ASTM A416, EN10138, BS 5896, AS 4671, ISO 6934, JISG 3536 and etc.

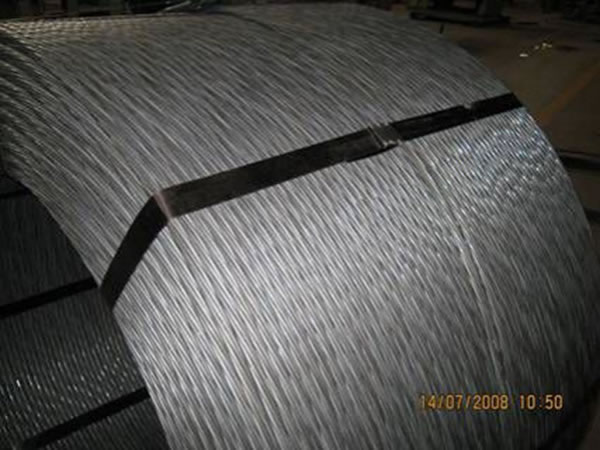

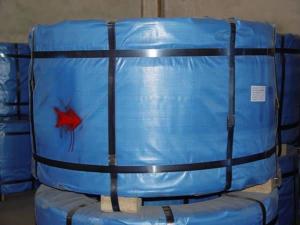

Packing: larger coil, 2500-3500kg/coil or as per customer’s requirement
Structure: 1x19, 1x7,1x3 & 1x2

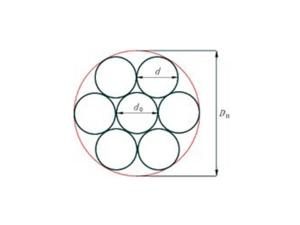

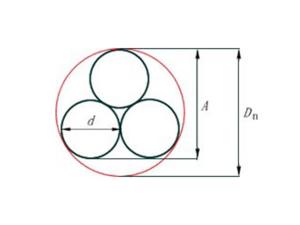

Cross Sectional Area of 1×7 Strand Cross Sectional Area of 1×3 Strand

For prestressed concrete structure reinforced, such as large-span bridges on railway and highway, overhead crane beam, rock-soil anchoring Project, multi-storey industrial buildings, stadiums, coal mines and etc.

If the existing strands fail to reach your demands, we provide customization service upon request.
