ACSR Cable for Overhead Power Line

Aerial Bundled Cable Solution, Zinc Coated Cable, Steel Core Cable

Technical Parameters of ACSR Cable for Overhead Power Line
1. Material: 45#, 60#, 65#, 70#, 72B, 80#, 82B, 65Mn
2. Surface Coating: Galvanized
3. Characteristic: Good galvanized, good corrosion prevention
4. Packing type:Spool

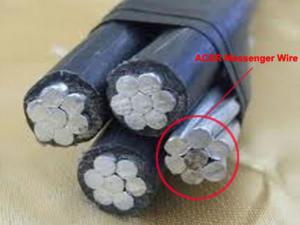

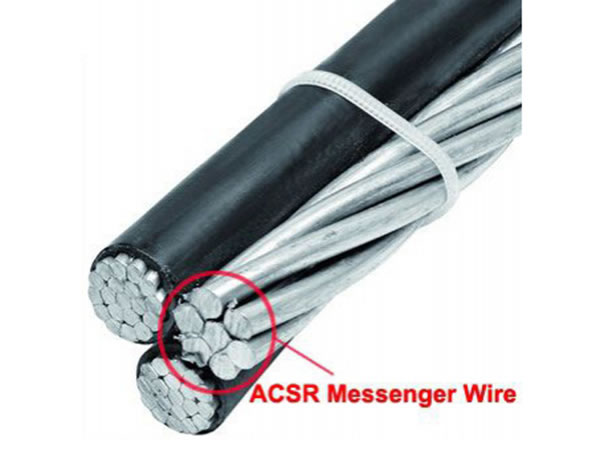

5. Application: Being used for overhead ground wire in electric communication, messenger wire, bare neutral messenger, or bare ACSR messenger in ABC cable

Matters Need Attention
a. During transportation, handle softly and carefully, avoid bumping and damaging the outer packing materials. Moisture and rain prohibited. Steel strand must be stored in dry and well ventilated indoors.
b. Pay attention to the direction of steel strand when paying-off. Be sure the spool is rotating freely as to achieve identical tension of all steel strands.
c. In case of batch usage, the remaining should be repacked to avoid oxidizing of the surface

Technical parameters of ACSR Cables
Structure Diameter(mm) Tensile Strength MPa
1X3 6.2-8.6 1175, 1270, 1370, 1470, 1570
1X7 3.0-12 1175, 1270, 1370, 1470, 1570
1X19 8.0-20 1175, 1270, 1370, 1470, 1570

Customization Service
Technical specifications can be designed upon request.
